RBRInstrumentChannels Struct Reference

Details reported by a combination of the instrument channels, channel, and calibration commands. More...

#include <RBRInstrumentConfiguration.h>

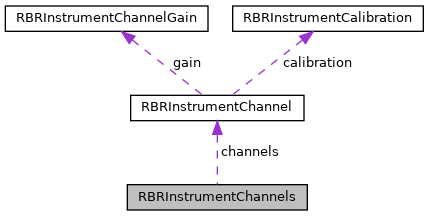

Collaboration diagram for RBRInstrumentChannels:

Data Fields
int32_t	count
	The number of installed and configured instrument channels.
int32_t	on
	The number of active channels, which excludes any turned off by the user. More...
RBRInstrumentPeriod	settlingTime
	The maximum power-on settling settling time across all enabled channels. More...
RBRInstrumentPeriod	readTime
	The maximum overall reading time across all enabled channels. More...
RBRInstrumentPeriod	minimumPeriod
	The minimum sampling period with the currently-active channels. More...
RBRInstrumentChannel	channels [RBRINSTRUMENT_CHANNEL_MAX]
	Specific channel details. More...

Detailed Description

Details reported by a combination of the instrument channels, channel, and calibration commands.

See also

RBRInstrument_getChannels()

https://docs.rbr-global.com/L3commandreference/commands/configuration-information-and-calibration/channels

https://docs.rbr-global.com/L3commandreference/commands/configuration-information-and-calibration/channel

https://docs.rbr-global.com/L3commandreference/commands/configuration-information-and-calibration/calibration

Field Documentation

channels

RBRInstrumentChannel RBRInstrumentChannels::channels[RBRINSTRUMENT_CHANNEL_MAX]

Specific channel details.

The first RBRInstrumentChannel.count entries will be populated.

minimumPeriod

RBRInstrumentPeriod RBRInstrumentChannels::minimumPeriod

The minimum sampling period with the currently-active channels.

Specified in milliseconds.

on

int32_t RBRInstrumentChannels::on

The number of active channels, which excludes any turned off by the user.

See also

RBRInstrumentChannel.status

readTime

RBRInstrumentPeriod RBRInstrumentChannels::readTime

The maximum overall reading time across all enabled channels.

Specified in milliseconds.

settlingTime

RBRInstrumentPeriod RBRInstrumentChannels::settlingTime

The maximum power-on settling settling time across all enabled channels.

Specified in milliseconds.

---

The documentation for this struct was generated from the following file:

• include/RBRInstrumentConfiguration.h
